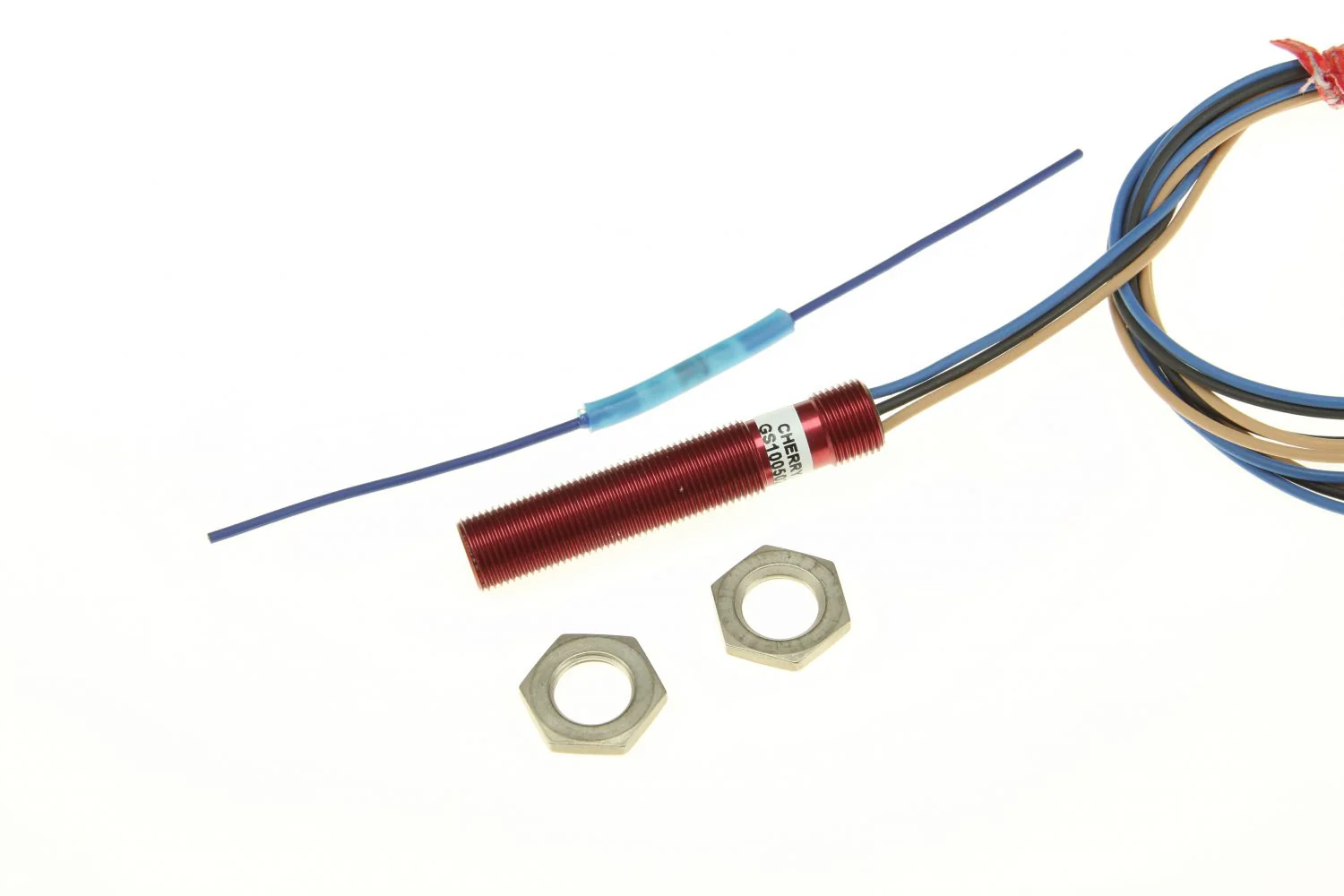

Hall Effect Threaded Body Crank/Cam Position Sensor

This Hall Effect Crankshaft Position Sensor is designed for accurate crankshaft position detection and is suitable for a range of automotive applications. Its threaded body allows for secure installation and ensures durability in demanding environments.

Features:

• Hall Effect Technology: Provides precise crankshaft position sensing
• Threaded Body: Ensures secure and stable mounting
• Versatile Compatibility: Suitable for various engine setups and ECUs

Ideal Uses:

• Crankshaft Position Sensor
• Camshaft Position Sensor
• Wheel Speed Sensor
• Driveshaft Speed Sensor

Specifications:

• Sensor Type: Hall Effect
• Operating Temperature Range: -40°C to 125°C
• Operating Voltage: 5 to 24 Volts
• Maximum Over Voltage and Reverse Voltage: +30 to -24 volts
• Maximum Supply Current Required: 6 mA
• Maximum Output Current Sinking: 20 mA
• Output Type: Open collector
• Output Signal: Digital
• Max Frequency: 10,000 Hz
• Nominal Air Gap: 1.5 mm
• Thread Pitch: M12 x 1.0
• Thread Length: 45 mm
• Body Length: 65.5 mm
• Body Diameter: 12 mm
• Package Material: Aluminum
• Sensor Orientation: Not directional
• Tooth Size: recommended rectangle shape measuring at least 2.5 mm x 6.35 mm, with a 5.0 mm tooth height
• Maximum Installation Torque: 5.65 Nm (50 in/lbs) on threads

Wiring:

• Wiring Color Code:
  • Brown: 5V/12V Power (Connect to either 5V Vref or Switched 12V)
  • Black: Output Signal to ECU
  • Blue: Ground

Included In Box:

• Threaded Body Hall Effect Sensor
