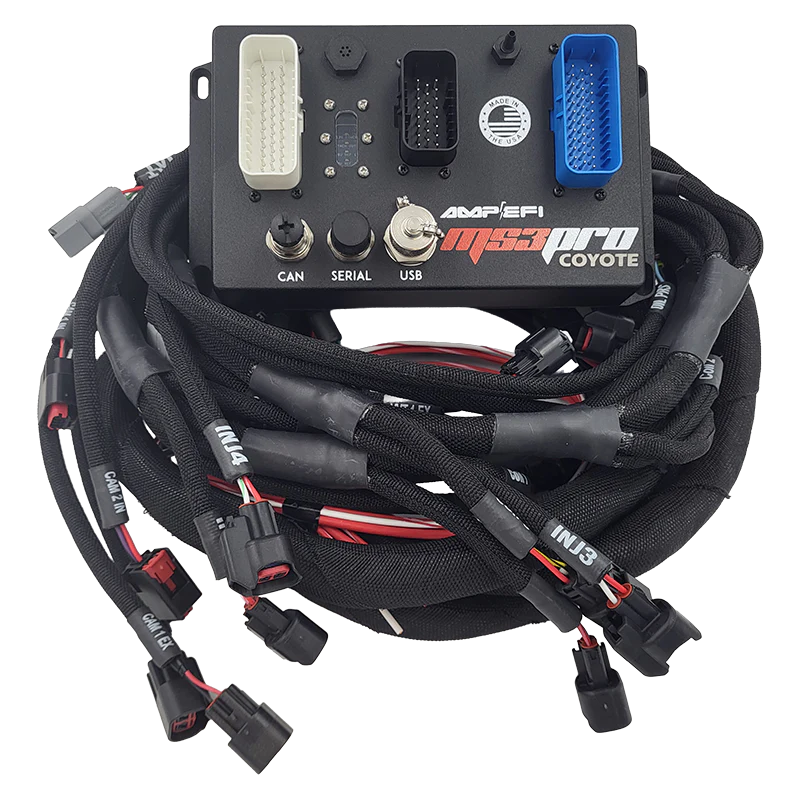

Coyote PNP Harness & MS3Pro EVO+ HC Package

Unleash the full potential of your engine with the MS3Pro EVO+ HC—a cutting-edge, high-performance engine management system built for serious racers and enthusiasts. Designed to work seamlessly with the Coyote Plug-and-Play Harness, the EVO+ HC provides precision control, reliability, and expandability for your Ford-powered build. Whether you’re looking to maximize power, fine-tune your setup, or push your vehicle to its limits, this system delivers the features and flexibility you need to stay ahead of the competition.

---

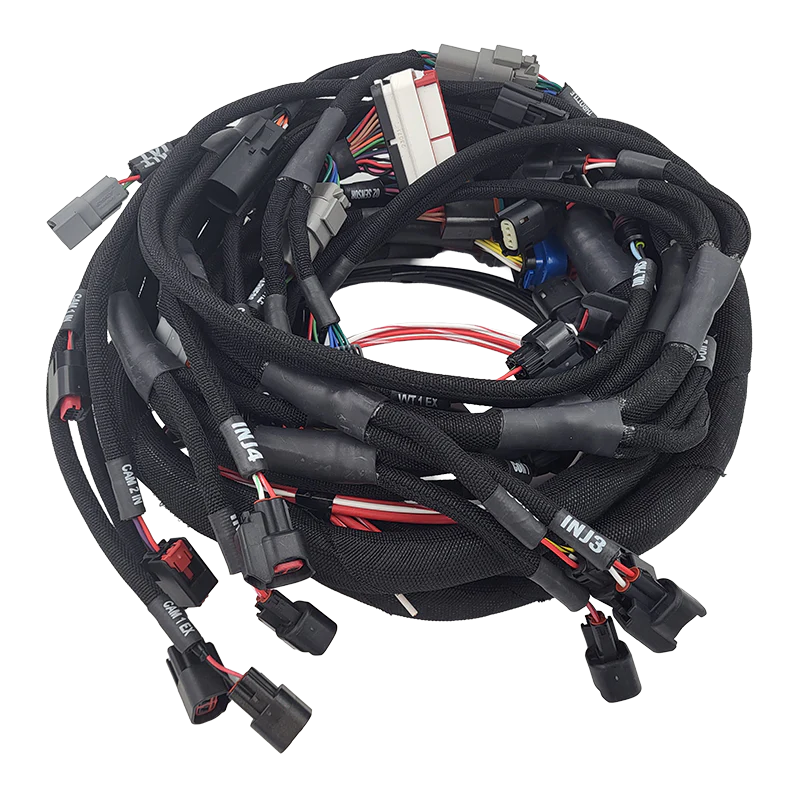

Coyote Plug-and-Play Harness

The Coyote PNP Harness is the industry’s leading wiring solution for Ford Coyote applications, offering unmatched quality, value, and ease of installation.

Compatibility

Engine

• Mustang
  • Generation 1
  • Generation 2 - Requires Phase Limiters
  • Generation 3 – Requires DI Pump Block-off and replace crank sensor with Gen 1 or 2
• Truck
  • Generation 1
  • Generation 2 – Requires repining of the harness to match the mustang firing order & Phase Limiters
  • Generation 3 – Requires repining of the harness to match the mustang firing order

Transmission

• Manual Transmission
• Automatic
  • 4R70W – can be used with Transmission Controller
  • 6R80 – NOT COMPATIBLE
  • 10R80 – NOT COMPATIBLE

Professional Engineering

• Plug-and-play installation – Fire up your engine on day one with a harness designed for quick and hassle-free setup
• Complete control of all 4 VVT cams – Optimized for full variable valve timing functionality with no need to Lock Cams
• Compatible with factory high-current coils – Designed to work with OEM ignition components

Durable Construction

• TechFlex woven wrap – for superior protection and durability
• High-temp TXL & GXL automotive-grade wire – for extreme reliability
• Labeled heatshrink on all connectors – for easy identification
• Adhesive-lined heatshrink joints – to protect connections from moisture and heat

Room to Grow – Future-Proof Your Build

All available MS3Pro I/O is fully integrated into the harness, enabling advanced tuning features such as:

• Traction control
• Bump box
• Table switching
• Flex fuel
• And more!

Beyond its functional advantages, this harness is also show-quality, ensuring your engine bay looks as impressive as it performs.

Throttle Options:

• Cable-Driven Throttle Body Compatibility: Adapter harness configured for LS cable-driven throttle bodies, supporting throttle position sensor and stepper idle valve
• Drive-By-Wire: Adapter harness designed for factory Coyote DBW, compatible with AMP EFI DBW


  ---

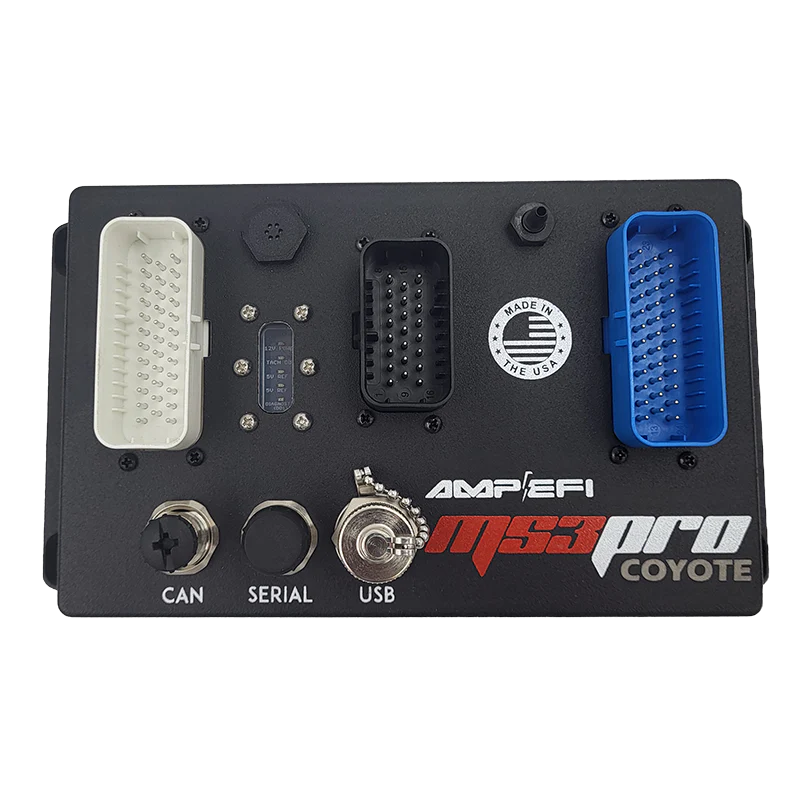

MS3Pro EVO+ HC

The MS3Pro EVO+ HC represents a revolutionary step in engine management technology, offering unparalleled scalability, performance, and reliability for even the most demanding applications.

Key Features:

• Engine Support: Manages up to 12-cylinder engines with sequential fuel injection or a 4-rotor Wankel engine with individual ignition outputs.
• Broad Ignition Compatibility: Supports over 50 ignition modes, including GM LS, Ford Coyote, Chrysler Hemi, and Bosch Motronic systems.
• VVT Control: Provides complete control of up to 4 camshafts, utilizing both open-loop and closed-loop VVT strategies.
• Enhanced Tuning Options: Supports VE-based, Speed Density, Alpha-N, MAF, and ITB tuning modes for ultimate tuning flexibility.
• Self-Learning Fuel Strategy: Features real-time adaptive fuel tuning to optimize performance and efficiency.
• Onboard Data Logging: Logs up to 64 channels at 330Hz, eliminating the need for additional data logging hardware.

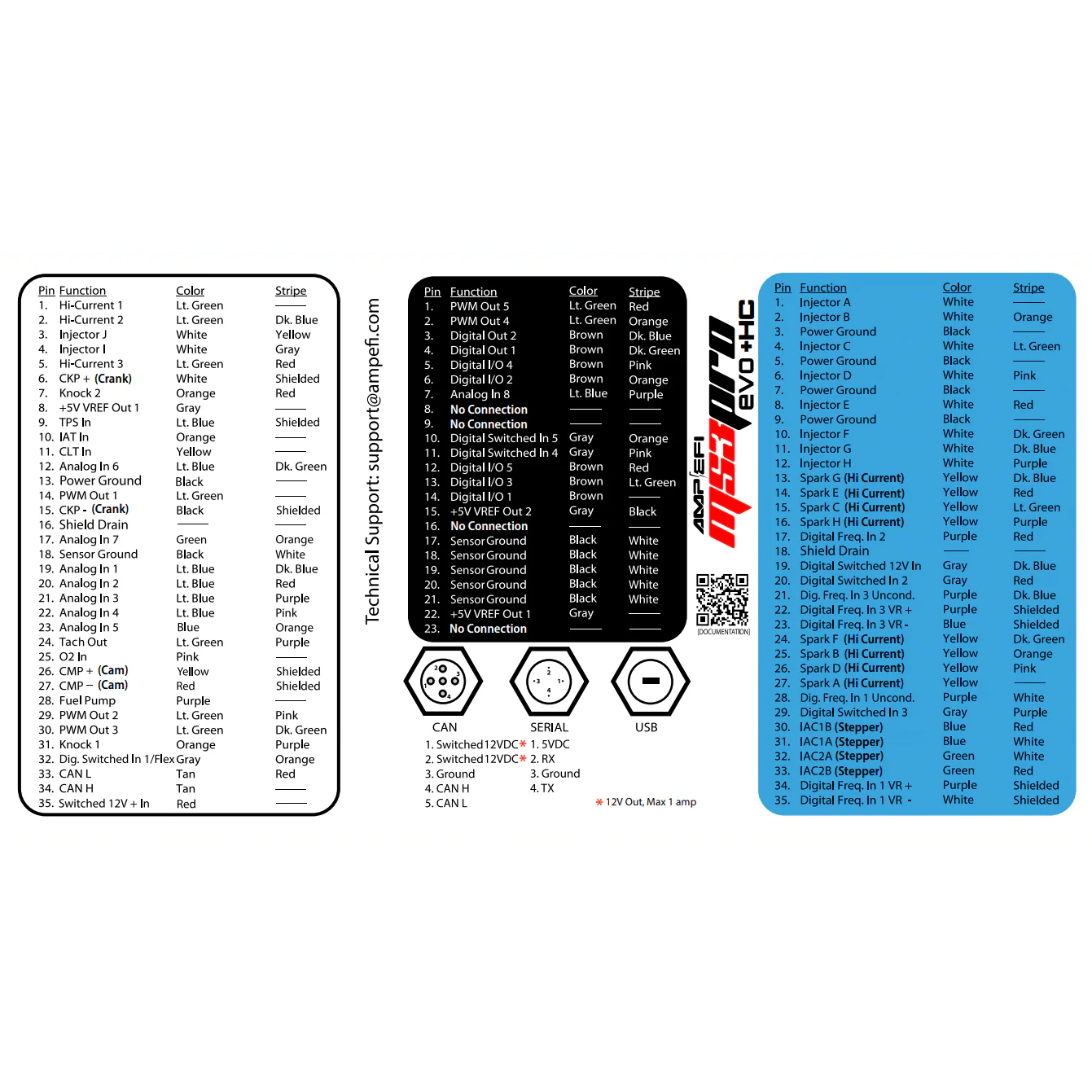

Inputs and Outputs (I/O) Configuration:

• Injector & Spark Outputs
  • Up to 12 Sequential High-Impedance Injector Outputs
  • Up to 10 High Current Spark Outputs
• Outputs
  • 7 Digital Outputs
  • 8 PWM Outputs
• Inputs
  • 12 Analog Inputs
  • 12 Digital Inputs
  • 5 Speed Inputs
  • 2 Knock Inputs

[Additional Details – Click Here]

---

What’s in the Box:

• Coyote PNP Harness
• 26-Pin Black Center Harness
• MS3Pro EVO+HC ECU
• Coyote Accessories
  • Alternator Harness
  • IAT Harness
  • GM Cable Throttle
  • DBW Throttle
  • 0-150 PSI Oil Pressure Sensor
  • IAT Sensor
  • Connectors
    • Spare
    • Fuel/Fuel Pressure
    • CAN
    • O2 Sensor
  • Tuning Cable
• TunerStudio Registration Code

---

Optional Add-ons:

These optional bundles are designed to pair perfectly with the Coyote Harness, making installation cleaner and future upgrades easier. Ideal for customers who want a plug-and-play experience with room to grow.

• ECU Harness Power Bundle
• Coyote Spare Wire Bundle
