AMP Competition ECU - Standalone EFI

The AMP Competition ECU represents the next generation of engine management from AMP Engine Management, combining years of proven control architecture with modern hardware integration and expanded capability for serious performance builds.

Designed for professional tuners and advanced enthusiasts, AMP Competition delivers precise control of fuel, ignition, and auxiliary systems while remaining flexible enough to grow with your project. With integrated wideband control, onboard pressure sensing, high-speed data logging, and robust automotive-grade connectivity, this ECU is engineered for demanding race, strip, and motorsport applications.

Built around a mature, race-proven control core and enhanced with AMP Engine Management hardware innovation, AMP Competition provides the confidence, speed, and expandability required for modern high-performance engines.

---

Hardware Overview

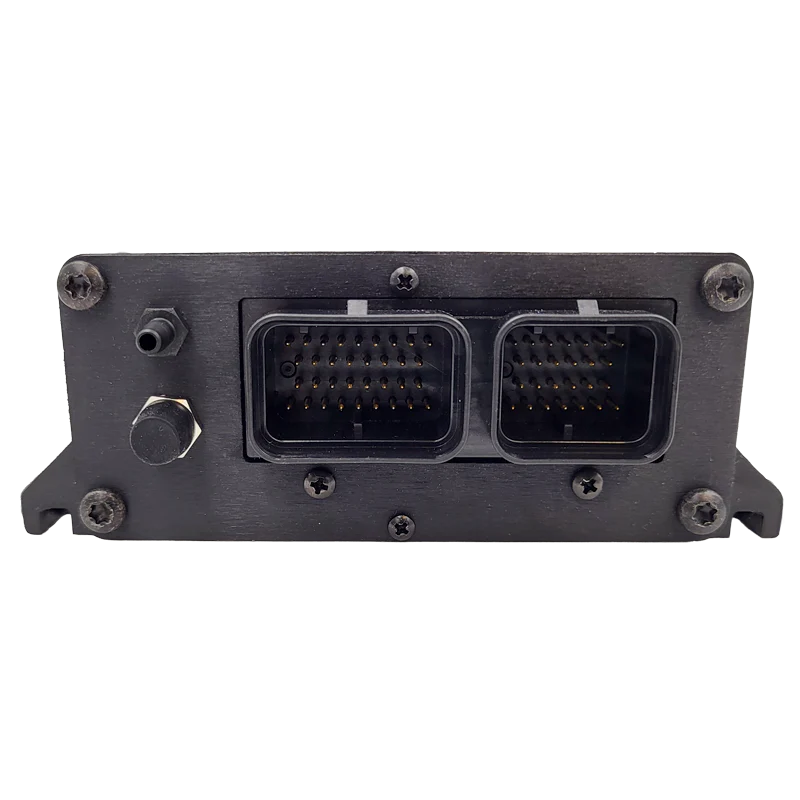

AMP Competition features dual SuperSeal automotive connectors with a total of 60 pins, delivering secure, environmentally sealed connections suitable for harsh engine bay conditions.

Integrated hardware includes:

• Bosch LSU 4.9 Wideband Control

• Onboard 4-Bar MAP Sensor

• Onboard Barometric Pressure Sensor

This combination reduces external components, simplifies wiring, and improves overall system reliability.

---

Integrated Bosch LSU 4.9 Wideband Control

AMP Competition includes integrated Bosch LSU 4.9 wideband control, simplifying wiring and reducing the need for external wideband controllers. This improves installation cleanliness and keeps critical AFR feedback tightly integrated into your tuning workflow.

Tip for best results: Pair wideband feedback with ECU safety strategies (below) for protection under boost and sustained load.

---

Key Capabilities of AMP Competition

• Engine Support: Manages up to 8-cylinder engines with sequential fuel injection and ignition or up to 4-rotor rotary engines with sequential fuel and individual leading/trailing ignition outputs
• Broad Ignition Compatibility: Supports over 50 ignition modes, including popular GM LS, Ford Coyote, Chrysler Hemi, and Bosch Motronic systems, and many more
• VVT Control: Manages up to 4 camshafts with both open-loop and closed-loop VVT strategies
• Enhanced Tuning Options: Supports VE-based, Speed Density, Alpha-N, MAF, and ITB tuning modes for precise control
• Self-Learning Fuel Strategy: Real-time adaptive fuel tuning for ease of use
• Onboard Data Logging: Logs up to 64 channels at 330Hz, removing the need for additional data logging equipment

---

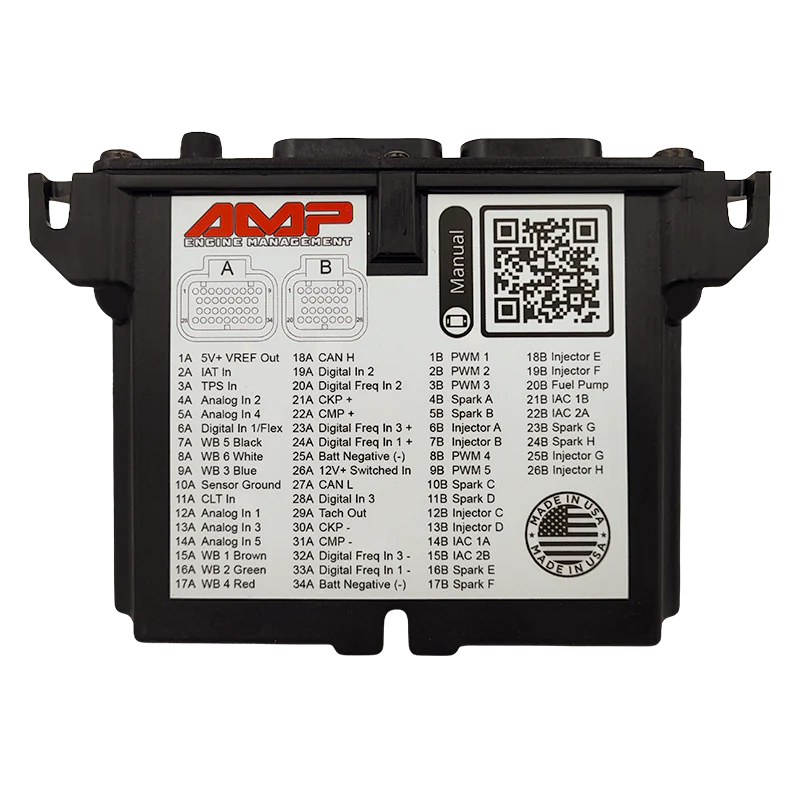

Inputs and Outputs

Inputs

• 8 Analog Inputs

• 6 Digital Inputs

• 5 Speed Inputs

• Dedicated inputs for MAP, Baro, PCB Temperature

• LSU 4.9 Wideband O2 Sensor

Injector and Spark Outputs

• Up to 8 sequential high-impedance injector outputs

• Up to 8 logic-level spark outputs

Outputs

• 5 PWM Outputs

• Tach Out

• Fuel Pump Control (on/off or PWM)

• Stepper IAC

Unused injector outputs can be set as programmable on/off or pwm outputs.  This I/O flexibility allows extensive control of engine, drivetrain, and auxiliary systems without additional expansion modules.

Communications

• CANbus
• Serial / RS232

---

Specialized Features for Enhanced Control:

• Boost Control: Multiple open and closed-loop strategies with table-based options for fine-tuned control
  • Boost by Gear and Speed
  • Switchable high/low boost tables
  • Single Solenoid or Dome Control Supported
• Traction Control: Multi-strategy options including Perfect Run, RPM control, and VSS % slip
• Launch, Trans Brake, and Bump Box Control: Advanced launch strategies for racing applications
• Nitrous Control: Supports staged/progressive control for wet or dry nitrous setups
• Three-Step Rev Limiter: Includes Burnout, Launch, and Redline limiters with line-lock and flat shift options
• Speed Limiter: Pit-speed & Roll-Race limiters are also supported
• Flex Fuel Support: Configurable blending for fuel, spark, boost, and enrichment tables based on ethanol content.  Compensates for both ethanol content and fuel temperature
• Water Methanol Injection: Load and RPM-based variable injection control with low-fluid safety detection

---

Safety and Engine Protection

AMP Competition is built with extensive engine protection strategies to safeguard high-value engines.

• Engine Protection: Limp mode and check engine lights for critical sensors, promoting safe operation
• RPM Limit vs Temperature: Limits RPM to protect the engine as temperature rises, ensuring safe operation
• Low Oil Pressure Shut Down: Shuts down the engine at a user-set oil pressure to prevent damage
• Fuel Pressure Compensation: Adjusts for fuel pressure changes to keep engine performance stable

---

Data Logging and Diagnostics

• Internal high-speed data logging

• Up to 64 channels at 330 Hz

• Internal SD card storage

• Real-time clock for timestamped logs

• Three onboard diagnostic LEDs for system monitoring

Logs can be retrieved via USB or serial connection for fast analysis.

---

Connectivity and Expansion

• CAN bus support for digital dashes, I/O expansion, and transmission controllers

• Seamless integration with tuning software

• Firmware updates available with no locked features or subscription requirements

---

Designed to Grow With Your Build

With professional-grade control, modern onboard hardware, and extensive expandability, the AMP Competition ECU is built for tuners who demand precision, reliability, and flexibility—whether refining a competitive race engine or developing a high-end custom build.

This ECU delivers the tools you need today while remaining ready for what your project demands tomorrow.
